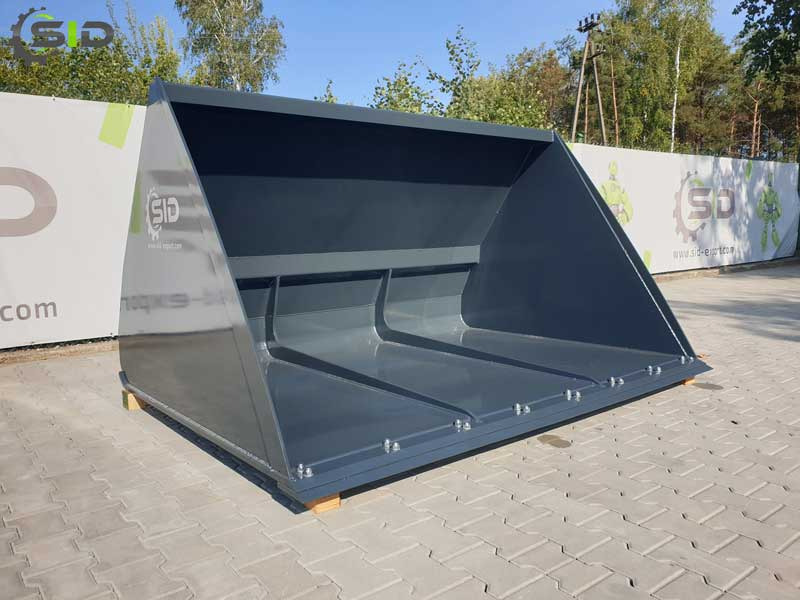

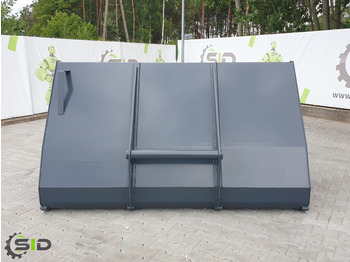

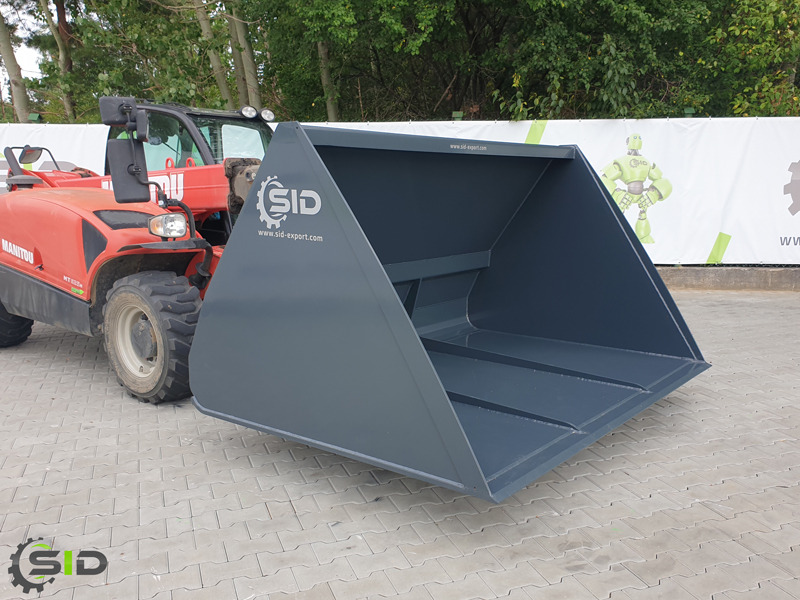

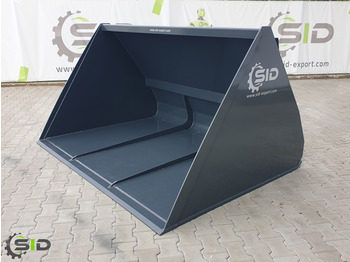

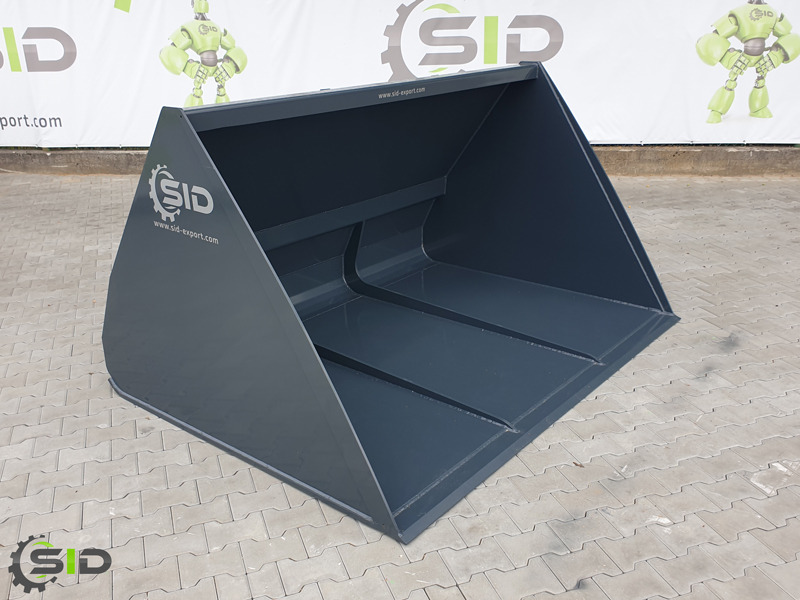

Godet pour chargeur neuf pour Camions SID VOLUMENSCHAUFEL FÜR RADLADER TELESKOPLADER / Volume loader bucket 1,9 m 1,0 m3

The volumetric bucket for loaders is a shovel designed for front loaders and loaders. The shovel is used for loading and unloading loose and bulky materials. The bucket is used in both the construction and agricultural sectors.

A volumetric bucket is a tool that is designed to speed up the loading and unloading of loose and volumetric goods. The volumetric shovel is made of very high-quality steel, which will allow for long-term and safe operation. In addition, the volumetric spoon has reinforcements that protect it from dents. The sides of the shovel are made of 6 mm thick sheet metal, but they also have pressed and welded side reinforcements made of 10 mm wide steel. The high-volume bucket has a hardox blade.

Main product features;

- Sheathing 6 mm, additional side reinforcement 10mm.

- Blade made of Hardox with dimensions of 150 mm x 20 mm.

- All welded fixing.

- Screwed blade - 175 € / lm

- It is possible to produce a volumetric bucket for the loader with dimensions according to customer needs. We are able to produce shovels up to a capacity of 20 m3.

- 12-month warranty.

Width | Volume SAE | Height (H) | Depth (B) | Weight | Price

1900 mm | 1,0 m3 | 888 mm | 1082 mm | 416 kg | 1 560 €

2000 mm | 1,8 m3 | 1137 mm | 1480 mm | 559 kg | 1 870 €

2100 mm | 1,0 m3 | 875 mm | 1085 mm | 440 kg | 1 620 €

2400 mm | 1,0 m3 | 806 mm | 956 mm | 440 kg | 1 640 €

2400 mm | 1,5 m3 | 969 mm | 1204 mm | 526 kg | 1830 €

2400 mm | 2,0 m3 | 1090 mm | 1408 mm | 599 kg | 1 990 €

2400 mm | 2,5 m3 | 1214 mm | 1615 mm | 675 kg | 2 160 €

2400 mm | 3,0 m3 | 1316 mm | 1785 mm | 743 kg | 2 310 €

2400 mm | 3,5 m3 | 1395 mm | 1885 mm | 767 kg | 2 380 €

2500 mm | 4,5 m3 | 1572 mm | 2135 mm | 918 kg | 2 730 €

2500 mm | 5,0 m3 | 1642 mm | 2233 mm | 967 kg | 2 835 €
