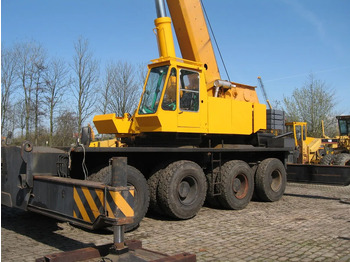

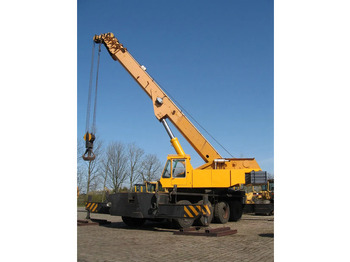

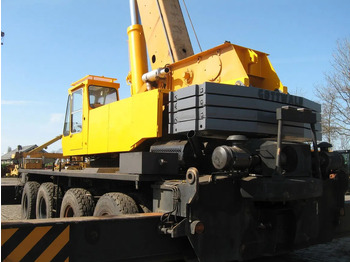

Gottwald TMK 100-44

INDUSTRIAL CRANE

MAKE: GOTTWALD

MODEL: TMK 100 - 44

CAPACITY: 90 / 110 TONS @ 3.00 MTR. RADIUS @ 75 / 85 %

75 TONS @ 3.00 MTR. RADIUS @ 66%

SERIAL NR: 180 003 00

YEAR OF MANUFACTURE: 1980

BOOMLENGTH: 12.50 - 38.00 MTR. FULL TELESCOPING

PLUS 8.50 MTR. MANUAL SECTION,

TOTAL LENGTH: 46.50 MTR.

FLY JIB: N / A

HOIST DRUMS: ONE

HOOKBLOCKS: 6 SHEAVES - 75 TON

ENGINE: DEUTZ BF 6 L 913

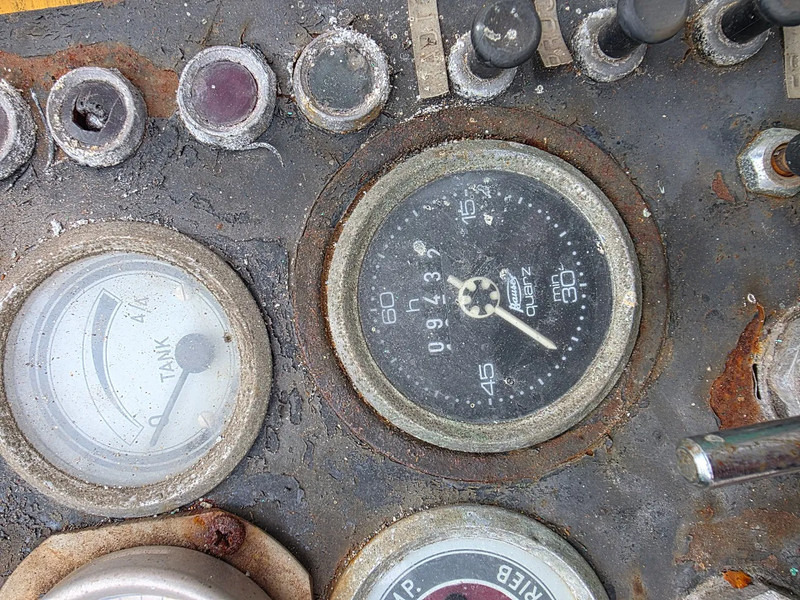

WORKING HOURS UPPER: 9.305

CHASSIS: GOTTWALD, 4 AXLES, 8 X 6 X 4

ENGINE: DEUTZ, F 12 L 413, 12 CYL. AIR-COOLED,

230 KW (314 HP) - 2.500 RPM.

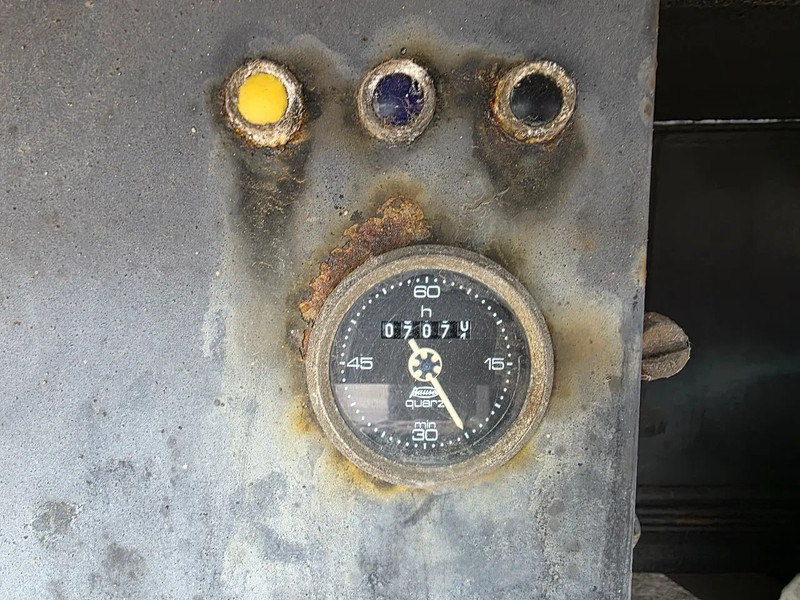

WORKING HOURS: 7.016

TRANSMISSION: TORQUE CONVERTER WITH POWERSHIFT

TRANSMISSION, 2 SPEEDS FORWARD AND

REVERSE

AXLES: PLANETARY TYPE, 2 STEERING AND

3 DRIVING

TYRES: 14.00 X 24 - MICHELIN 50-80 % GOOD

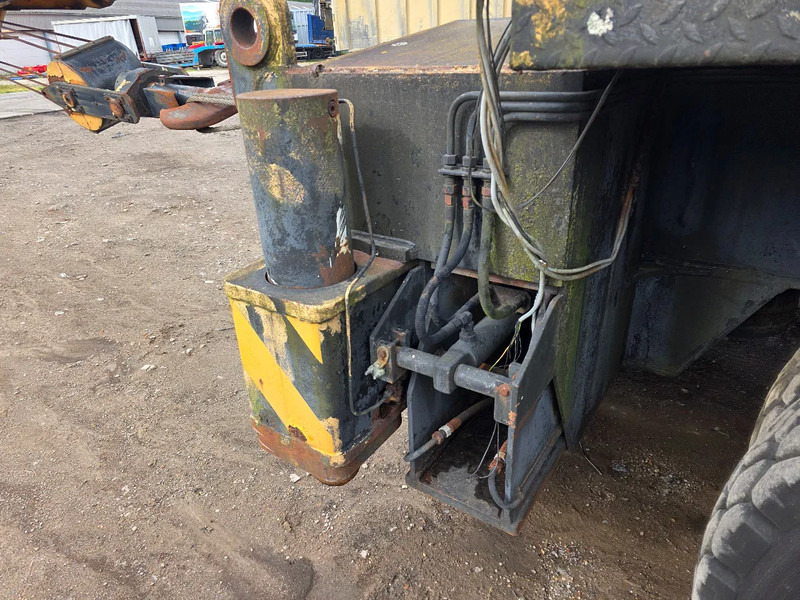

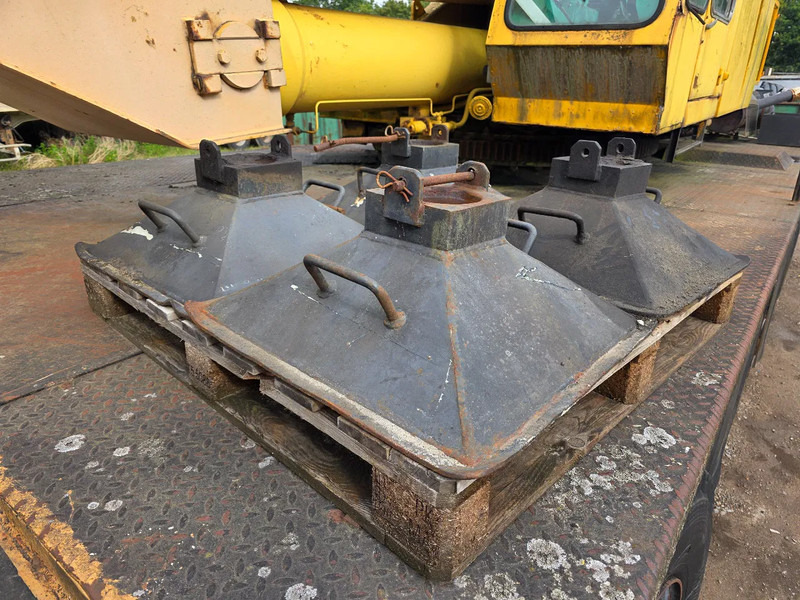

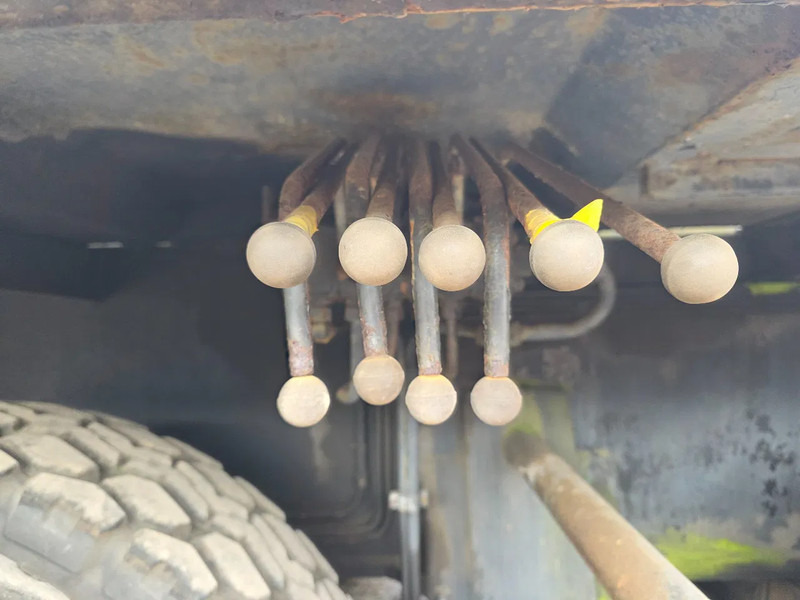

OUTRIGGERS: HYDRAULIC EXTENDABLE BEAMS WITH

VERTICAL JACKS

PRICE: P O A

THIS CRANE IS COMING FROM A NAVAL YARD AND HAD ONE OWNER FROM NEW.

A VERY STRONG CRANE

GOTTWALD TMK 100/44

TECHNICAL DETAILS CHASSIS

CHASSIS ENGINE

12-Cylinder Diesel-engine Aircooled

Make KHD Deutz

Type F 12 L 413

Power according DIN 70020 @ 2.500 rpm 235 KW (320 PS)

Transmission: GM – ALLISON, TYP TRT 4820, with hydrodynamic torque converter, planetary shift forward and reverse.

Travelling speeds (km/h) @ 2500 rpm :

Speed 1. 2.

Forward 6,5 27,0

Reverse 7,5 28,0

Forward and reverse speeds are more or less equal and continuously variable in all gears from 0 to max. adjustable.

Axles: 2 x GOTTWALD Axle ridgid with planetary drive.

1 x GOTTWALD Axle steering with planetary drive.

1 x GOTTWALD Axle steering but non driven.

Steering of 1st and 4th axles are hydraulic. Middle axles are ridgid.

Tyres: 16 each, 14.00 R 24

Outriggerbase: 8.00 m x 8.60 m.

Max. groundpressure: 71 to. per outrigger jack

Operating weight: approx. 76 ton incl. counterweight

CRANE UPPER

ENGINE:

Make : KHD DEUTZ

Type: BF 6 L 913

Power: 117.5 KW ( 160 PS ) @ 2.300 rpm.

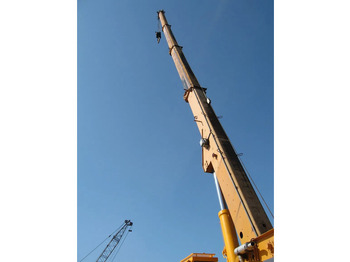

Main boom: 12,50 m. Fully retracted

21,00 m. Telescopic section I and II extended half

29,50 m. Telescopic section I and II fully extended

38,00 m. Telescopic sections I, II and III fully

extended

46,50 m. Telescopic sections I, II, III and manual

section fully extended

WORKING SPEEDS:

Main hoist: Low speed (single line up to 6 t) 0 to approx. 35 m/min.

High speed 0 to approx. 70 m/min.

Slewing: 0 to approx. 1 rpm.

Boom derricking 0 to 84º approx. 70 seconds.

Boom telescoping up to 38 m. approx. 180 seconds.

All speeds are continuously variable controlled. All crane movements are

controlled from crane upper cabin indivi

More information

Model year: 1980

Field of application: Construction

Drive: Wheel

Mast: telescopic (6 parts)

Mast length: 47 m

Technical condition: good

Visual appearance: good

Please contact Bart Mostert (+31625408013, sales@mosterttrading.com) or P. Mostert (+31625408013) for more information
