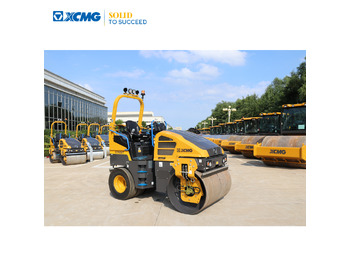

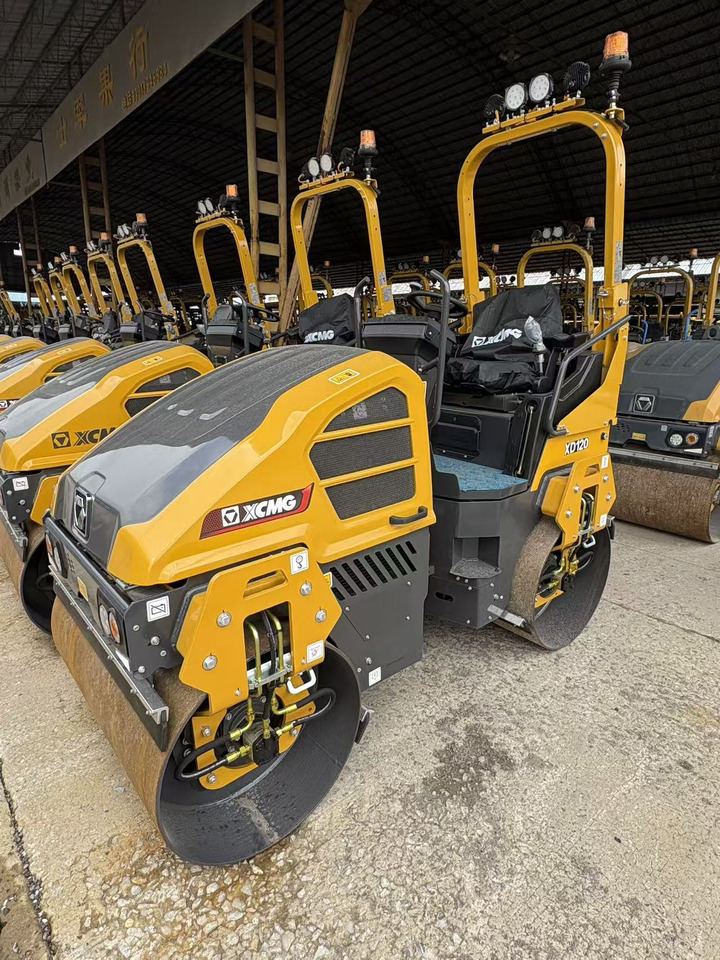

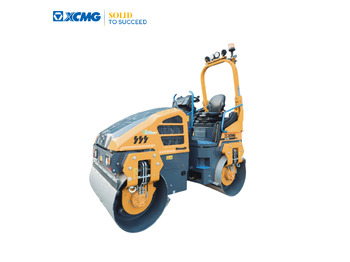

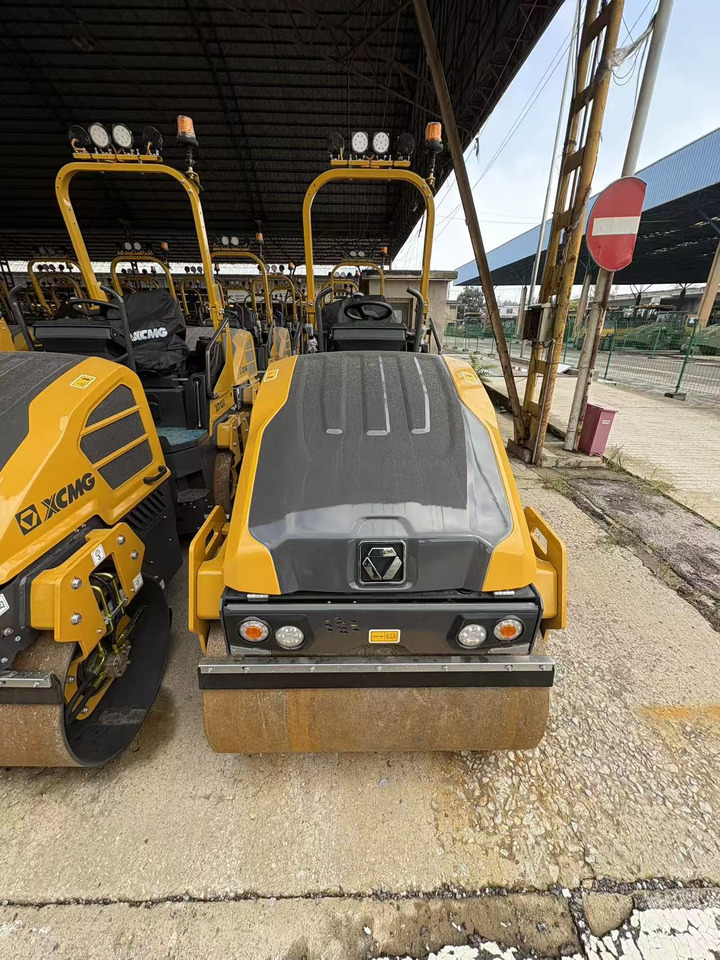

Mini compacteur XCMG small XD120 Double Drum Vibratory Road Roller

XD120 dual-drive dual-vibration vibratory road roller features small amplitude, high frequency vibration, big exciting force as well as separate vibration.It is mainly applicable to compaction work on asphalt top layer of newly built pavement and thinner stable soil pavement, and road maintenance work.With compact structure, high flexibility, small blind area, high operating comfort, it is an ideal compaction equipment for municipal maintenance and highway custody.

Content Unit XD120

Operating weight kg 2850

Front axle weight kg 1350

Rear axle weight kg 1500

Static linear load N/cm 110/122

Working speed km/h 0-10

Theoretical gradeability % 30

Minimum turning radius (inside/outside) mm 2500/3700

Minimum Ground Clearance mm 275

Wheelbase mm 1773

Oscillation angle ° ±8

Brakdistance(smooth cement pavement) m <3.4

Vibration frequency Hz 63/67

Nominal amplitude mm 0.5

Excitation force (high/low frequency) kN 36/41

Drum diameter mm 720

Drum width mm 1200

Charge pressure, drive system MPa 2.5

Peak pressure, drive system MPa 38

Peak pressure, vibration system MPa 25

Peak pressure, steering system MPa 16

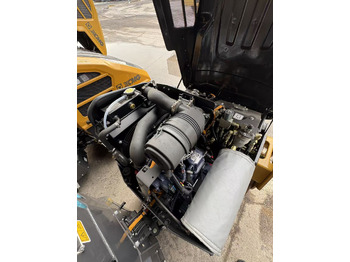

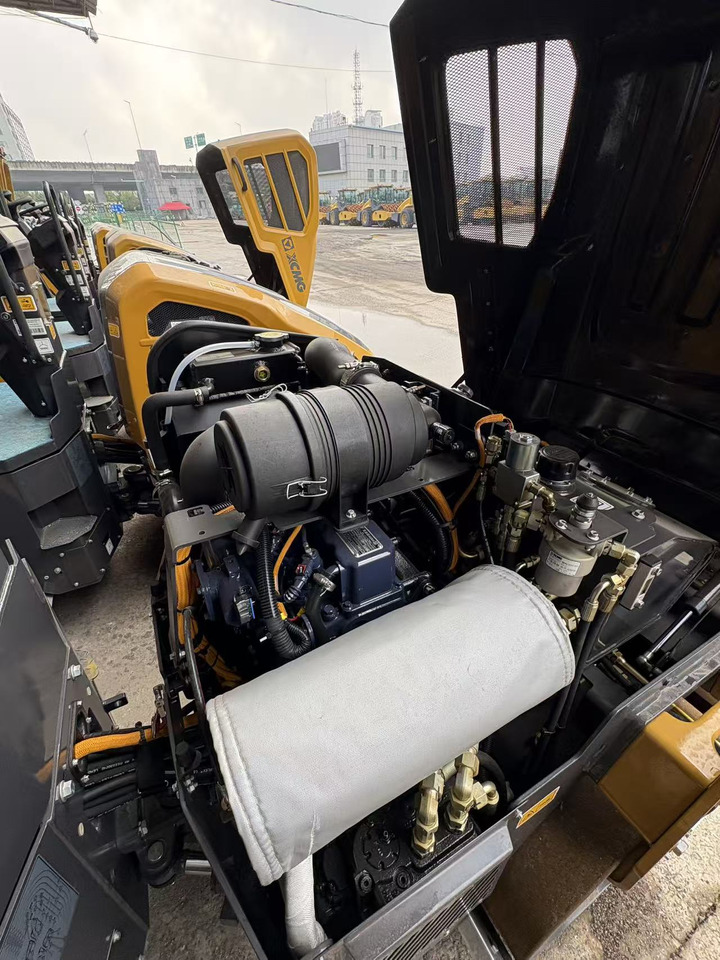

Model KUBOTA D1703

Type In-line 3-cylinder water-cooled

Rated power kW 25.6

Rated speed r/min 2600

Drive method Hydrostatic closed-loop

Vibration method Hydrostatic open-loop

Service brake Hydraulic

Parking brake Mechanic/hydraulic

Secondary brake Mechanic/hydraulic

Steering system Articulated

Steering control Articulated
