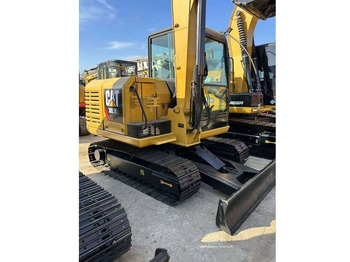

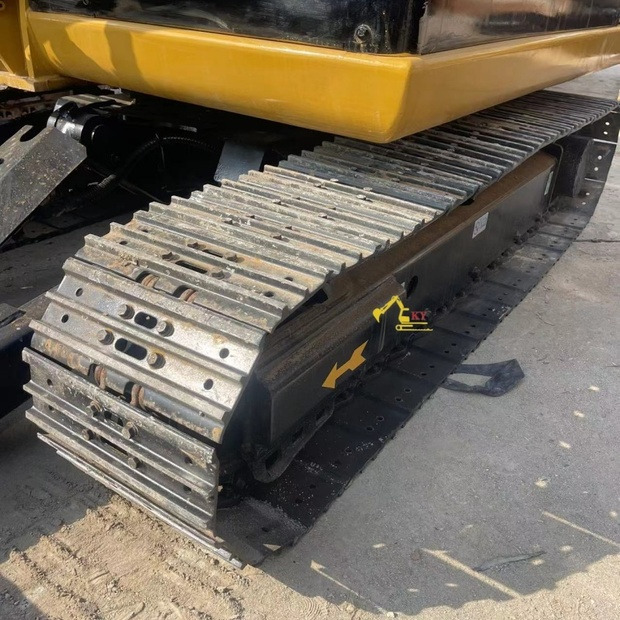

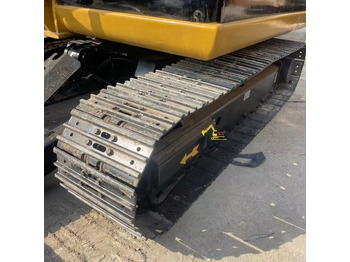

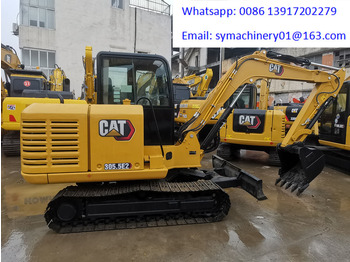

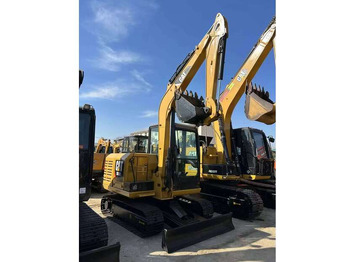

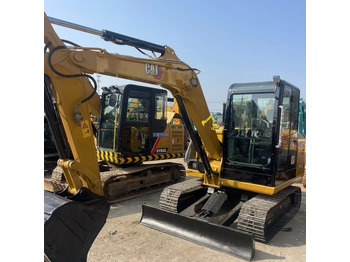

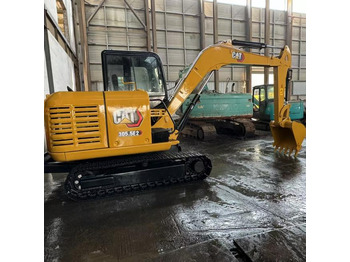

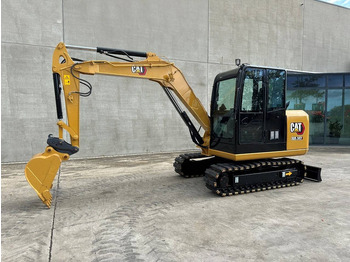

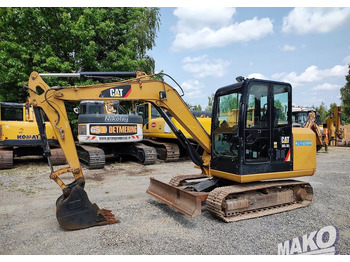

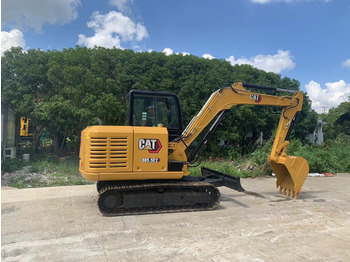

Pelle sur chenille 2024 Caterpillar 305.5E

1. Engine:

Model: Cat C2.4 DI

Net Power: 31.1kW (41.7hp)

Gross Power - 2400rpm - SAE J1995: 34.1kW (45.7hp)

Net Power - 2400rpm - ISO 9249/SAE J1349: 31.1kW (41.7hp)

Displacement: 2.4L

Bore: 87mm

Stroke: 102.4mm

2. Operating Weight: 5400kg

3. Dimensions:

Ground Clearance: 628mm

Track Length: 2440mm

Shipping Height: 2540mm

Transport Width: 1950mm

Tail Swing Radius: 1580mm

Track Gauge: 1550mm

Length - Roller Center: 1920mm

Shoe Width: 400mm

Shipping Length: 5765mm

4. Hydraulic system:

Working pressure - equipment: 25000kPa (3626psi)

Working pressure - travel: 25000kPa (3626psi)

Working pressure - swing: 21600kPa (3133psi)

Digging force - bucket: 35kN (7868lbf)

Digging force of bucket arm: 27.2kN (6115lbf)

Type: Load sensing hydraulic system with variable displacement piston pump

5. Swing system:

Swing torque: 13.9N·m (10.3lb/ft)

Machine swing speed: 10.5min-1

6. Oil capacity:

Cooling system: 9.8L (2.6gal (US))

Engine oil: 9.5L (2.5gal (US))

Hydraulic oil tank: 58L (15.3gal (US))

Fuel tank: 78L (20.6gal (US))

Hydraulic system: 85L (22.5gal (US))

7. Operating range:

Maximum reach - ground: 5830mm (19.1ft)

Maximum reach: 5955mm (19.5ft)

Maximum depth: 3720mm (12.2ft)

Maximum digging height: 5460mm (17.9ft)

Maximum dump height: 3835mm (12.6ft)

Maximum vertical digging height: 2210mm (7.3ft)

8. Boom and arm length:

Boom length: 3200mm (126in)

Arm length: 1500mm (59.1in)

9. Others:

Gradability - Maximum: 25°

Maximum traction - High speed: 40.2kN (9037lbf)
