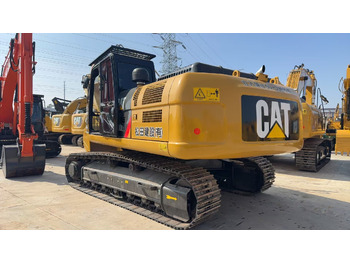

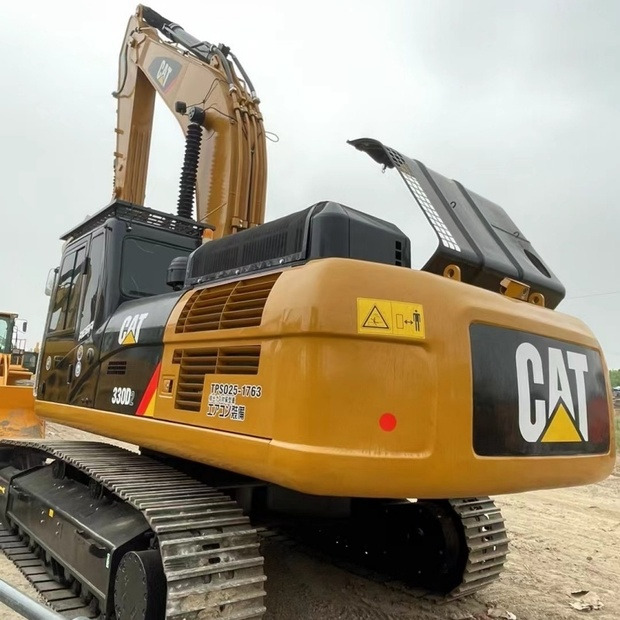

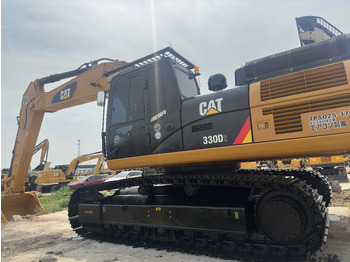

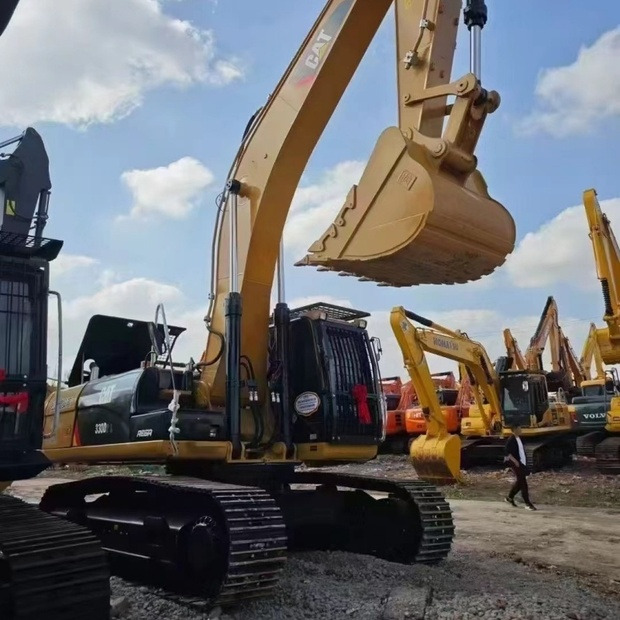

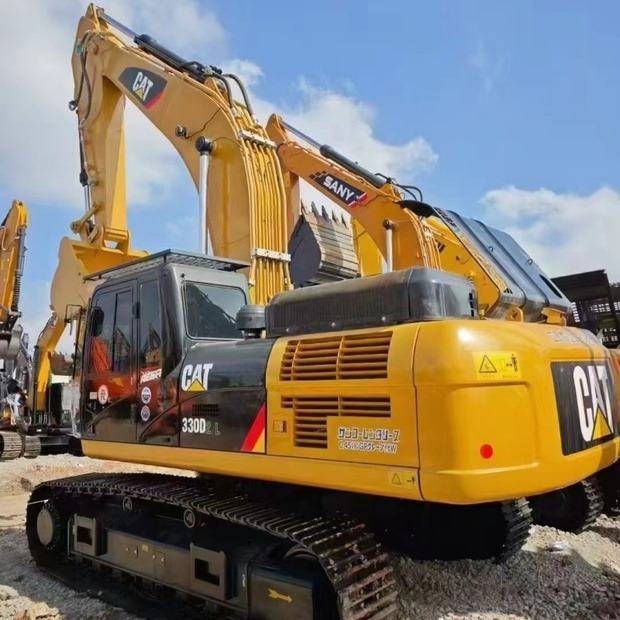

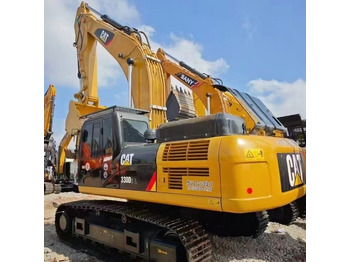

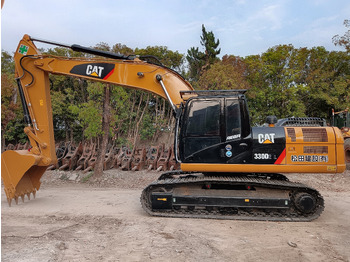

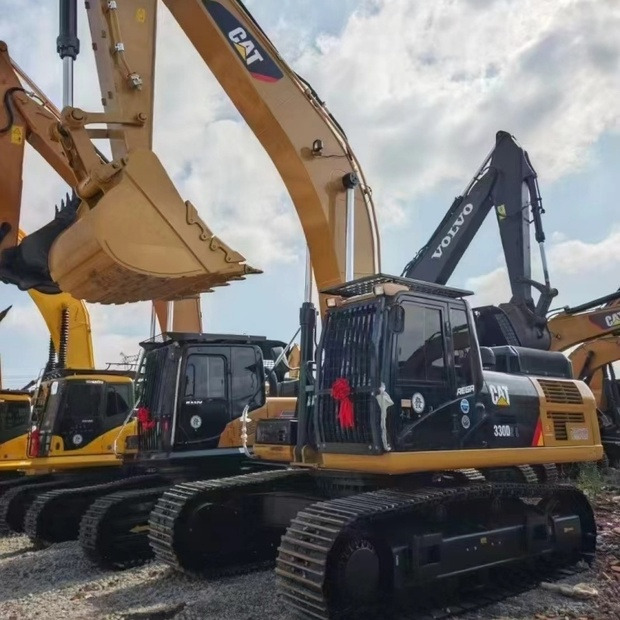

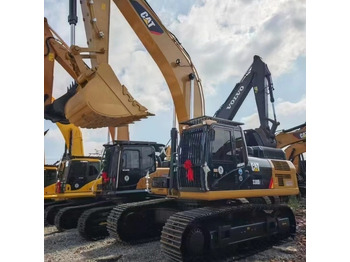

Pelle sur chenille 2024 Caterpillar 330D2

1. Engine:

Model: CAT C7.1 ACERT

Net flywheel power - SAE J1349/ISO 9249: 211hp (157kW)

Gross power - ISO 14396: 213hp (159kW)

Bore: 105mm

Stroke: 135mm

Displacement: 7.01L

Emission standards: Equivalent to US EPA Tier 2, EU Stage II emission standards

2. Operating weight:

Long chassis, 600mm track, standard boom and stick, 1.54m³ bucket: 30310kg

Long chassis, 800mm track, heavy-duty boom and stick, 2.12m³ bucket: 28980 - 30310kg

3. Dimensions:

Transport length: 10.36m

Transport width: 3.19m

Transport height: 3.33m

4. Capacity:

Fuel tank: 520L

Cooling system: 31L

Engine oil: 22L

Swing drive: 10L

Final drive - each: 6L

Hydraulic oil tank: 257L

Hydraulic system - including oil tank: 310L

5. Hydraulic system:

Main system - Maximum flow (1700rpm during operation): 480L/min

Main system - Maximum flow (L/L 1750rpm during driving): 494L/min

Main system - Maximum flow (H/L 1800rpm during driving): 508L/min

Maximum pressure - driving: 35MPa

Maximum pressure - equipment: 35MPa

Pilot system - Maximum pressure: 3920kPa

Swing system - Maximum flow: 240L/min

Maximum pressure - swing: 27.5MPa

Pilot system - Maximum flow: 23.1L/min

6. Slewing mechanism:

Slewing speed: 9.6r/min

Slewing torque: 82.2kN·m

7. Driving performance:

Maximum traction: 248kN

Maximum driving speed: 5.3km/h

Engine speed - driving: 1800r/min

Engine speed - working: 1700r/min

8. Operating range - HD boom (6.15m)

Minimum loading height: 2250 - 2800mm

Maximum digging height: 10040mm

Maximum digging depth: 7290mm

Maximum reach - ground: 10240 - 10720mm

Maximum vertical digging depth: 5840 - 6160mm

Maximum loading height: 6760 - 6900mm

9. Operating range - heavy boom (5.55m)

Maximum digging depth: 6140mm

Maximum vertical digging depth: 4290mm

Maximum reach - Ground: 9470mm

Maximum digging height: 9140mm

Minimum loading height: 2430mm

Maximum loading height: 5960mm

10. Bucket capacity: 1.54m³
