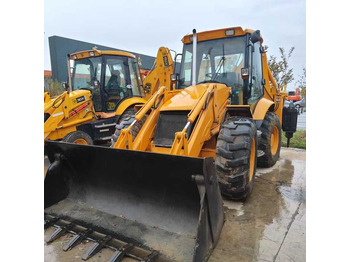

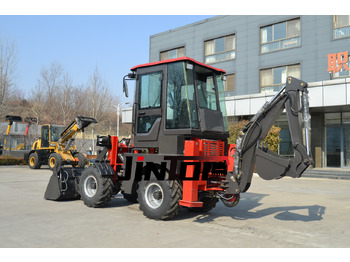

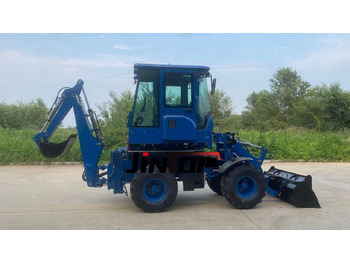

Tractopelle 1500KG Backhoe Loader

Overall Dimension: 6800x1900x2960mm

Rated load: 1500kgs

Operate weight: 3800kgs

Bucket width: 1700mm

Bucket capacity: 0.7m³

Dig bucket capacity: 0.1m³

Max. dumping height: 2800mm

Max. digging depth: 2000mm

Dumping distance: 1050mm

Model: YUNNEI engine

Rated power: 37KW

Pattern: In-line, water-cooling, 4cylinder, direct inject

Optional model: XINCHAI/YANMAR engine

Storage Battery: 80 A free-maintenance

Gearbox model: Mechanical or hydraulic

Axle: Isuzudriveaxle(drum brake)

Drive model: Four wheel drive

Steering angle: ±35°

Min. Turning Radius: 4500mm

Pattern: Articulated type full-hydraulic power steering

Service brake: Drumbrake(Expanding shoe brakes)

Parking brake: Hand operate,disc brake

Model: 20.5-16

●Enlarged operator cabin, with secure glass, is capacious and bright.

●Working table, water temperature, oil temperature, current, work timing are all in sight.

●Famous brand hydraulic components are adopted, two gear oil pump work together, the power is driving and loading and dumping can change freely.

●Adjustable seat, convenient and comfortable to use.

●Rear and front body, with small rotary radius, hydraulic steering, comfy and convenient to operate.

●Ascendant performance of complete appliance, with extraordinary operation efficiency.

●With which many kinds of optional components can be matched to meet requirements of different users.
