Tracteur agricole New MAXUS 50HP Tractor 4x4 50km 4x4

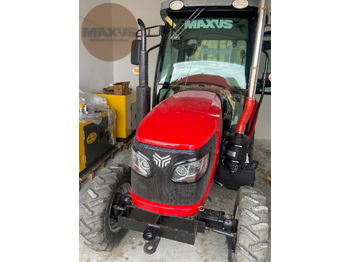

MAXUS 50 Tractor

Transmission: 8 + 2 gears,

10-inch single-acting clutch, developed by Leitai,

Chassis, simple pedal, Leitai hood,

Strong lifting capacity,

Standard rear guard,

High and low plate,

2 sets of hydraulic outlets,

PTO output power: 540/720,

Xu tire size: 11.2-24/6.5-16,

Maintenance-free battery,

Front and rear counterweights.

Technical Parameters

Model

Power (HP): 50 / Type: 50

Type: Wheel tractor / Frame type: Arch

Drive Type: 4WD

External Dimensions (L × W × H): 3595 × 1500 × 2330 mm

Wheelbase: 1970 mm

Common wheel spacing (front/rear): 1210/1180 mm or 1210, 1310/1105-1430 mm

Minimum Ground Clearance: 315 mm (lower part of the rear frame)

Horizontal Distance from the Front Surface of the Clutch Housing to the Line of the Rear Drive Shaft: 1068 mm

Distance from the Center of the Intermediate Shaft Hole: 80.5 mm

Minimum Weight: 1800 kg

Minimum Service Gear Ratio (kg/kW): 48.91/39.03

Number of Gears (Forward/Reverse): 8+2

Number of Main Gears: 4+1

Number of Gears: 2

Maximum Theoretical Speed: 31.9 km/h

Engine-Clutch Connection Mode: Direct connection

Rollover Protection Device Type (Cab or Rollbar): Rollbar

Engine Model: YN4H055-30VE

Engine Structure: Inline, water-cooled, four-stroke

Engine Inlet Mode: Naturally aspirated

Number of Engine Cylinders: 4

Nominal Engine Power: 36.8 kW

Engine Calibration Speed: 2400 RPM

Engine Cooling Mode: Water-cooled

Air Filter Type: Wet/Dry

Dimensions of Exhaust Silencer (L × W × Thickness or Diameter × Length): Φ110 × 400 mm

Silencer Weight: 6 kg

Steering and Transmission:

Steering System Type: Fully hydraulic steering system

Steering Mechanism: Steering control

Steering Type: Front-wheel steering

Transmission Type: Mechanical system

Number of Gearboxes: 2

Main Gear Ratio Position: In box 2

Main Gear Shift Mode: Mechanical stepped shifting

Auxiliary Gear Shift Mode: Mechanical stepped shifting

Tire Model (Front/Rear): 6.5-16 / 11.2-24

Hydraulic Suspension System Type:

Separate Suspension Type: Three-point rear suspension

Suspension Category: Category II

Number of Hydraulic Power Groups: 2

Safety Valve Opening Pressure (MPa): 16 ± 0.5

PTO Shaft Outlets: 6 or 8

Standard PTO Speed (RPM): 540/720

Lifting Capacity at 610 mm from the Lift Point: 9000/11000 N
