Matériel forestier Proportional Valve Walvoil DPX100 with Control Scanreco RC400 and JP Joysticks Danfoss for Parker, Nordhyraulic, Fassi, Hiab

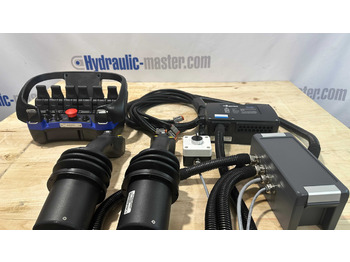

Scanreco G2B Mini 6 pads 12/24V and with 2 JP joysticks.

You can switch in real time between radio control and joysticks according to your needs and operating convenience at any time!

This kit is configured for the most popular machine settings, supporting up to 6 standard crane functions. If you require a different dedicated configuration, we can customize it to meet your needs, including variations in spools, voltage, the number of sections, anti-shock valves, connectors, etc.

The kit is designed for plug-and-play convenience. We handle everything from the plugs to the software configuration.

We provide technical support and are readily available via email, whatsup and telephone.

Feel free to contact us at shop@hydraulic-master.com or damian@hydraulic-master.com for any inquiries or assistance.

After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.

Scanreco G2B Mini with 6 levers

- 1-6 linear levers

- Stop function according to EN ISO 13849-1 Cat. 3, PL e

- Various toggle switches, buttons and rotary switches

- Frequency bands: 433-434 or 902-928MHz (other frequencies available on request)

- Operating range > 100 m / > ~330 ft.

- Degree of protection: IP65

- Operating temperature: -20°C to +70°C / ~-4°F to +160°F

- Cable control: standard length 10 meters / ~33 ft.

- G2B Receiver Danfoss 12 or 24 VDC power supply

- Choice of radio or cable control

- 8 bi-directional voltage regulated outputs for Danfoss PVG-32 valves

- All analog outputs are programmable for final setting of speeds

- - 14 digital outputs (where 1 is combined input/output) and 4 digital inputs (where 1 is combined input/output)

- A DV output to control the dump valve

- Radio communication in the ISM band using frequency hopping technology

- Manual mode available to bypass the radio system, providing only the DV output and allowing manual control via the hydraulic manifold (where available).

- Programmable logic with block, soak, decelerate, ramp functions and much more

- Please note that cable sets or connection plug sets are NOT included in the scope of delivery and must be ordered separately if required.

- Dimensions: (W x H x D): 350 x 160 x 190 mm / ~13.78 x 6.30 x 7.48 inches (without color display)
