Pompe hydraulique Linde Verstellpumpe-Axialkolbenpumpe Typ:HPV 55-02R 2623. #HPV55BC#

In stock

-

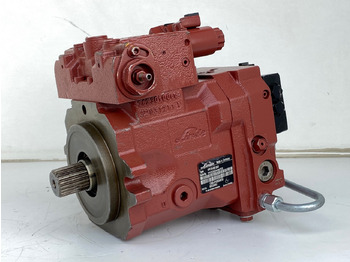

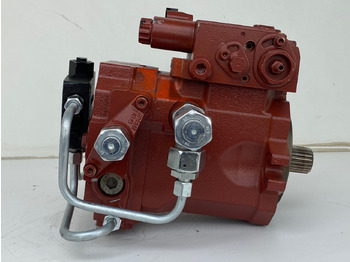

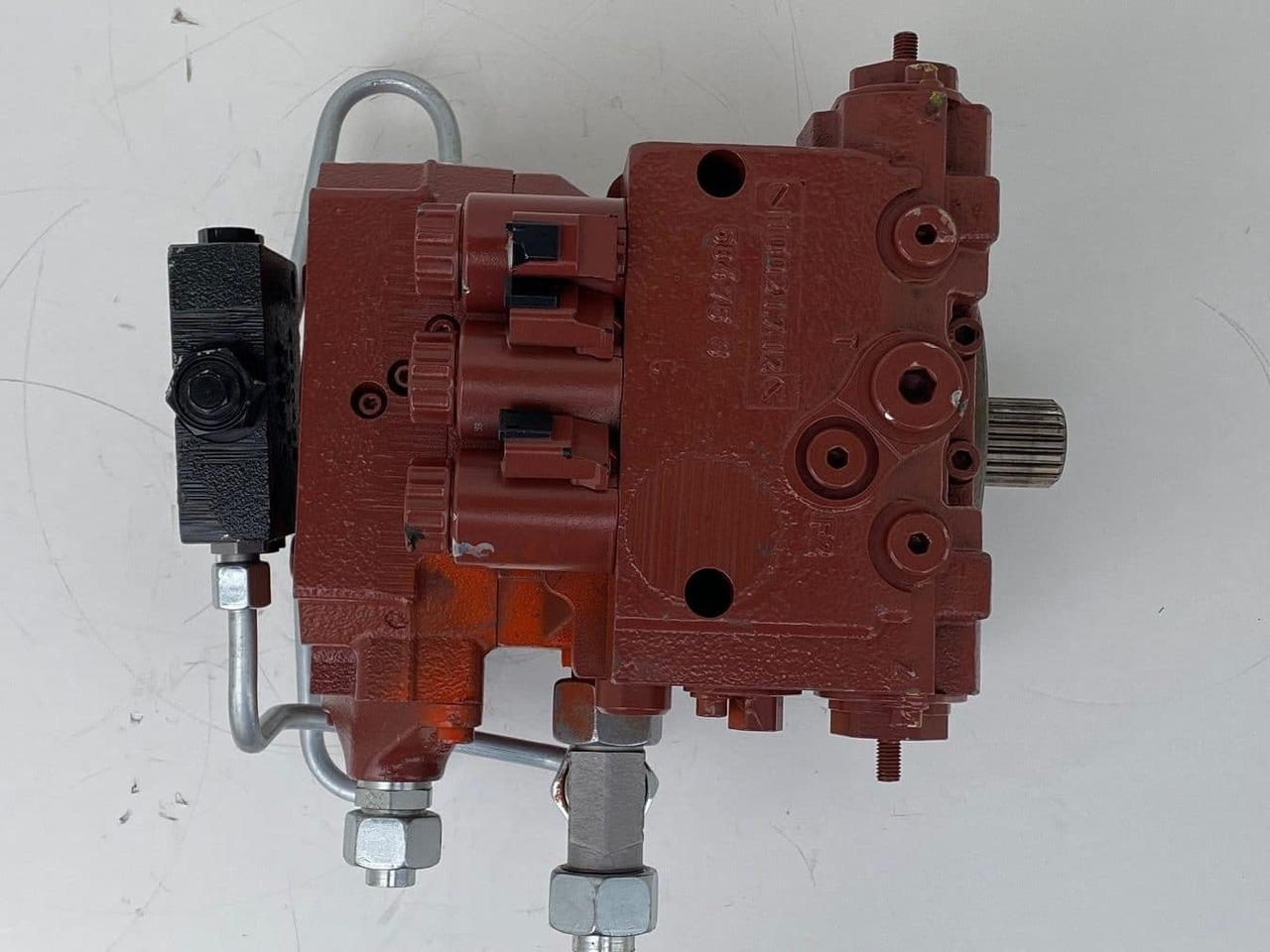

I am selling a new Linde Variable Displacement Axial Piston Pump

Linde Variable Displacement Axial Piston Pump Type:HPV 55-02R 2623.

Linde Space Parts Number:0001246851.

Linde:

Variable Displacement Pumps for Closed Circuit Operation

All the controls used in the Series 02 are based on a load-independent control mechanism. No matter which control is used: identical commands always result in the same response in the machine. The sensitive and precise machine control makes work easier and increases productivity. Various customer system options for mechanical, hydraulic and electric input solutions are available. Further special regulating features like torque control and pressure cut-off are also available. The reliable control of the pump can easily be integrated into any kind of vehicle management control system. Thanks to the reliable adjustment, the hydraulic pump can be easily integrated into any type of vehicle management.

Advantages

Compact Design

High Power Density

Dynamic Response

High Reliability

Long Service Life

Noise-Optimized

Precise and Load-Independent

Design Characteristics

Axial piston pump in swashplate design for high pressure closed loop systems

Clockwise or counter clockwise rotation

Exact and rugged servo control devices (mechanical, hydraulic, electro-hydraulic)

Integrated high pressure relief valves with make-up function

Integrated low pressure relief valves for boost, control and cooler circuits

Replaceable cartridge filter

SAE high pressure ports

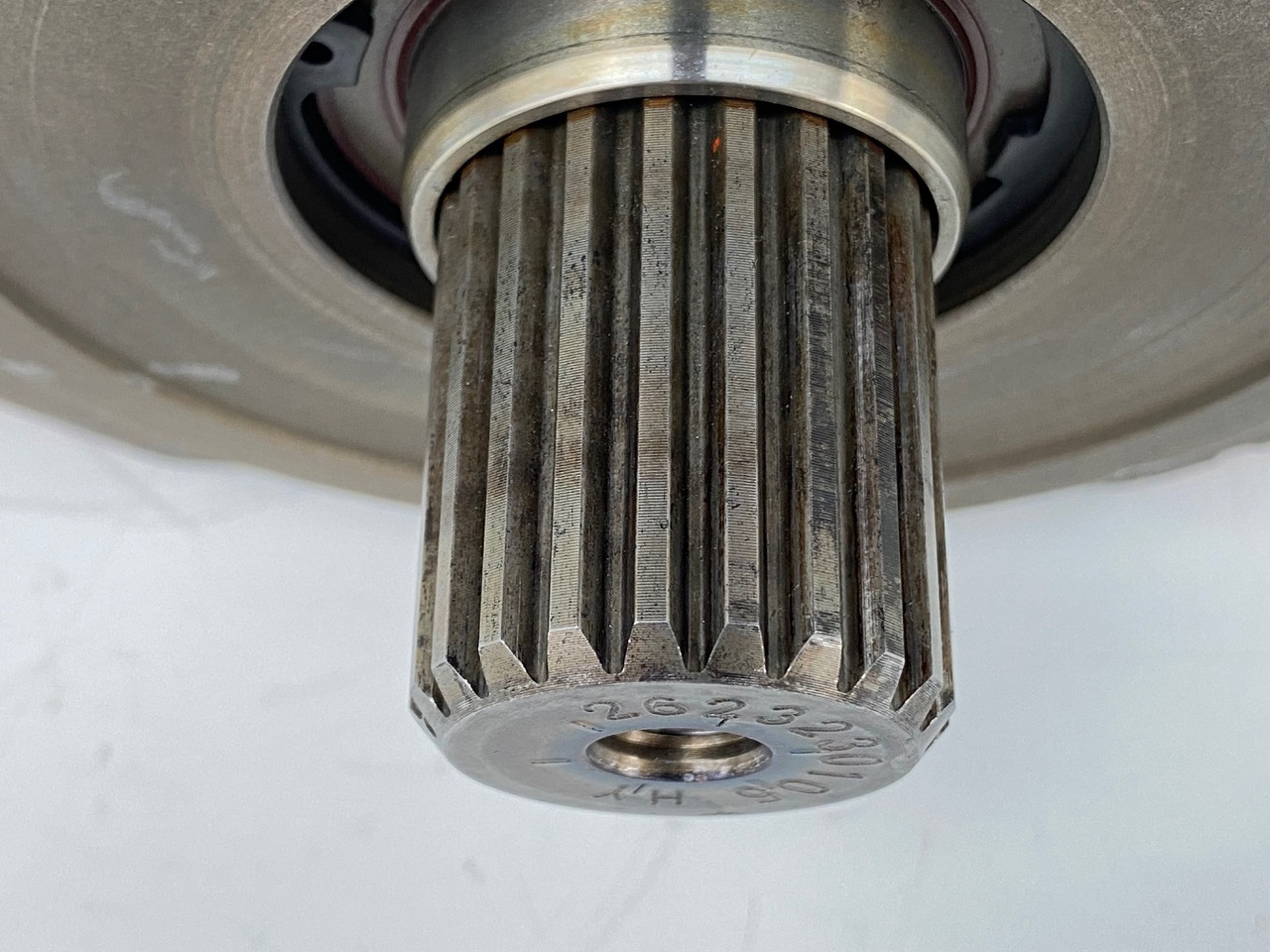

SAE mounting flange with ANSI or SAE spline shaft

Through shaft SAE A, B, B-B and C

Charge pressure pumps for internal and external suction, integrated cold start relief valve optional

Optional tandem and multiple pumps

Controls

M1R mechanical lever

H1 hydraulic pilot

E1 electro-hydraulic

E2 electro-hydraulic with enable function

E5 electro-hydraulic, 3 postition

CA speed related hydraulic mechanical with torque-/power limiter

Control Options

Power Limiter

Pressure cut-off

Technical Data

HPV-02 55

Max. Displacement cm³/U 54,7

Max. operating speed U/min 3900

Max. speed rpm 4150

Nominal pressure bar 450

Max. pressure bar 500

Torque Nm 374

Corner power (theor.) kW 153

Weight (approx.) with H1 control, without oil kg 46

The Axial Piston Pump is in new condition.

!! It is a new Axial Piston Pump !!

If you have any questions or visits, please feel free to contact me.
