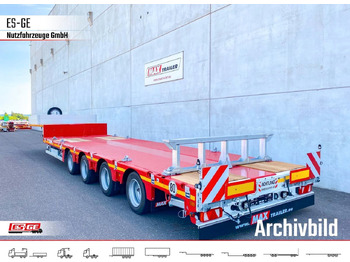

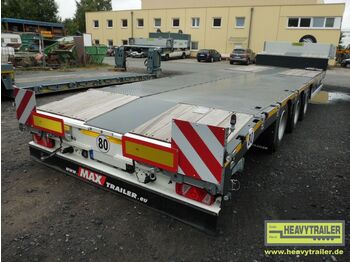

Semi-remorque surbaissé neuf Faymonville MAX Trailer 3-Achs-Tele-Semi-Sattelauflieger

Gooseneck:

Gooseneck with beveled corners at 45° at the front and with a bevel at the rear of approx. 750 mm x 10°

3 pairs of lashing rings (LC 5.000 daN)

Hardwood covering 30 mm thick

Extendable loading area:

Extendable loading area with a rear bevel of approx. 1.000 mm x 8°

6 pairs of lashing rings that can be folded outwards (LC 5.000 daN)

3 pairs of lashing rings that can be folded outwards (LC 10.000 daN)

1 pair of lashing rings lying at the front in the loading area (LC 10.000 daN)

Cut-outs in the outer frame of the loading area for hanging straps (LC 2.000 daN)

Hardwood covering approx. 48 mm thick, checker plate covering over the axles

Axles and tyres:

BPW axles and suspension, 2 axles rigid, 1 axle self-steering

Technical axle load: 12.000 kg

Electromagnetic reversing lock to be activated via reverse gear and manually

Air suspension with raise and lower valve

Axle tool

Tyres: 235/75 R 17,5 3PMSF

Braking system:

Braking system according to EU regulations with EBS-E (2S2M)

Painting:

First-class and long-lasting corrosion protection of the standard shot-peened welding frame guaranteed by a 2-component (2K) zinc dust primer.

A high-quality 2-component (2K) single-colour top coat in MB 7350 nova grey

Rear section metallized and painted in RAL 9010 (pure white)

Landing legs:

JOST landing legs (mechanical) with 2-speed gearbox for 24t lifting capacity (50t test load)

Steel construction:

Steel construction made of high-strength fine-grain steel

Steel grades:

S355J2+N/S355MC (yield strength 355MPa)

S690QL/S700MC (Yield Strength 690MPa)

Electrical system:

Electrical system according to EU regulations, lighting LED 24 volt ASPÖCK-NORDIK (ASS3)

ASPÖCK -NORDIK (ASS3)

ASPÖCK-UNIBOX on the connection strip at the front with sockets 24N, 24S & 15-pin connection according to ISO.

24N ISO-1185

24S ISO-3731

15-pin ISO-12098

Additional equipment:

2” king pin

A galvanized steel end wall approx. 400 mm high

A spare wheel with holder in front of the bulkhead

4 wheel chocks with holders on the bulkhead

A warning light holder at the rear of the trailer

Mount in the rear area of the gooseneck for ALU docking ramps

Mounts at the rear for optional docking ramps

Galvanized folding supports under the bevel of the loading area

Suspension bar for ALU docking ramps at the rear of the vehicle

Red reflective tape on the side, on the extension and on the back in accordance with EU regulations

Yellow-red air couplings on the front of the galvanized connection strip

On the gooseneck and on the rear panel on the left and right, a holder for the warning signs including a socket

A mud flap at the rear of the trailer

Manual and description on a USB stick

ALU side walls and rear wall that can be plugged onto the gooseneck (approx. 2.440 x 400 mm)

The rear stanchions are removable

Four warning signs (approx. 423 x 423 mm) that can be pulled out by approx. 400 mm and have an LED position light

3 pairs of WADER container pockets in the loading area for a 20ft (30ft) or a 40ft container

6 pairs of stanchion pockets (100x50 mm) in the outer frame of the loading area

Galvanized extensions, extendable by approx. 230 mm on each side

A bracket for a warning light on the warning signs

European reflector signs (red-yellow) on the rear of the trailer

Speed sticker 80 km/h on the rear and on both sides

Load manometer to determine the axle loads including load diagram

HRM metallization (High Resistance Metallization) of the outer frame

Complete steel construction shot-blasted, then the defined visible surfaces metallized with ZINACOR 850 (zinc 85% - aluminum 15%), hot-coated
